AD8676BRZ-REEL7 Integrated Circuit Chip 2 Channel Precision Power Amplifier IC

Product Categories
Walton Electronics Co., Ltd.
Contact Now

AD8676BRZ-REEL7 Integrated Circuit Chip 2 Channel Precision Power Amplifier IC

  • 1
  • 2

Brand Name : Original

Model Number : AD8676BRZ-REEL7

Certification : ISO9001:2015standard

Place of Origin : Original

MOQ : 10pcs

Price : contact us to win best offer

Payment Terms : 11.T/T, L/C, Western Union, Paypal

Supply Ability : 10000pcs/months

Delivery Time : 1-3workdays

Packaging Details : Standard

Package / Case : SOIC-8

Product Category : Precision Amplifiers

Mounting Style : SMD/SMT

Factory Pack Quantity : 1000

Number of Channels : 2 Channel

Unit Weight : Unit Weight:

Contact Now

AD8676BRZ-REEL7 Integrated Circuit Chip IC Power Amplifier Module Semiconductors

Specifications:

GBP - Gain Bandwidth Product: 10 MHz
SR - Slew Rate: 2.5 V/us
CMRR - Common Mode Rejection Ratio: 130 dB
Output Current per Channel: 20 mA
Ib - Input Bias Current: 2 nA
Vos - Input Offset Voltage: 12 uV
en - Input Voltage Noise Density: 2.8 nV/sqrt Hz
Supply Voltage - Max: 36 V, +/- 15 V
Supply Voltage - Min: 10 V, +/- 5 V
Operating Supply Current: 5.4 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Shutdown: No Shutdown
Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Development Kit: EVAL-CN0209-SDPZ
Dual Supply Voltage: +/- 9 V, +/- 12 V
Height: 1.5 mm
Length: 5 mm
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 5 V
Operating Supply Voltage: 10 V to 36 V
Output Type: Rail-to-Rail
Product: Precision Amplifiers
Product Type: Precision Amplifiers
PSRR - Power Supply Rejection Ratio: 120 dB
Subcategory: Amplifier ICs
Type: General Purpose Amplifier
Voltage Gain dB: 126 dB
Width: 4 mm
Unit Weight: 0.019048 oz

FEATURES:

Very low voltage noise 2.8 nV/√Hz @ 1 kHz
Rail-to-rail output swing
Low input bias current: 2 nA maximum
Very low offset voltage: 12 μV typical
Low input offset drift: 0.6 μV/°C maximum
Very high gain: 120 dB
Wide bandwidth: 10 MHz typical
±5 V to ±18 V operation

APPLICATIONS:

Precision instrumentation
PLL filters
Laser diode control loops
Strain gage amplifiers
Medical instrumentation
Thermocouple amplifiers

AD8676BRZ-REEL7 Integrated Circuit Chip 2 Channel Precision Power Amplifier IC


Product Tags:

PLL filters Integrated Circuit Chip



No Shutdown Integrated Circuit Chip



Precision Power Amplifier IC


Quality AD8676BRZ-REEL7 Integrated Circuit Chip 2 Channel Precision Power Amplifier IC for sale

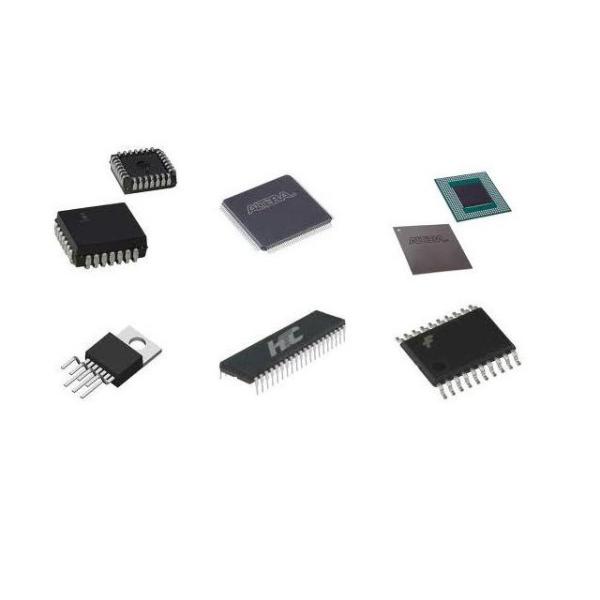

AD8676BRZ-REEL7 Integrated Circuit Chip 2 Channel Precision Power Amplifier IC Images
